Flexible Strip Brush for Weatherseal

Designers and engineers can address many weathersealing applications with
Sealeze Ez-Flex™ strip brush. Constructed entirely without metal parts, these brushes use high-quality nylon or polypropylene filament. Ez-Flex strip brush provides a flexible solution to many weatherseal applications, even in temperatures as low as -70° F.

Ez-Flex strip brush comes in virtually any length, with nylon or polypropylene filament, nylon or polypropylene channels and a variety of filament trim lengths and diameters. It can be used with or without our traditional aluminum holders. To download the Sealeze Ez-Flex strip brush worksheet in PDF format, click here.

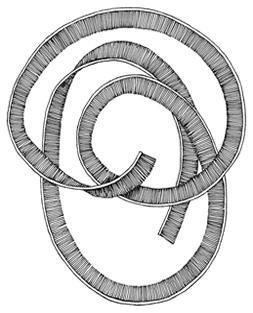

Sealeze Ez-Flex provides architects and designers with a flexible way to eliminate problems. Need a continuous length of brush to fit around curves? Ez-Flex bends. Need to use brush in a corrosive environment? Sealeze Ez-Flex strip brush is metal-free so it won’t corrode the way some metal can. Need a product that’s light-weight and easy to install? Wire snips or heavy duty scissors can be used to cut this flexible brush. The lack of metal means that it weighs less, is corrosion proof and provides a wide range of design alternatives.

While Ez-Flex is designed to fit in our stock holders, it’s also available with a molded integrated holder. This eliminates the need for a separate holder for applications where a traditional holder is unnecessary or inappropriate. Designers who capitalize on the
flexibility Ez-Flex brings to design projects can explore possibilities not feasible with typical weatherseal products.

Sealeze Ez-Flex strip brush is an excellent choice for:
• use in corrosive environments
• environmentally conscious installations
• meeting FDA approved standards

Due to the nature of extruded plastic materials, please note the dimensional tolerances and take these into consideration when incorporating these products into your design.

Sealeze Standard Flexible Strip Brush
Section	Product Code Nylon	Product Code Polypro	Standard Filament Diameter	Dimensions See Note*		OAT ±0.015	Standard Continuous Length (feet)
				X	Y
C	FXC106BL	FXC206BP	0.006	0.180	0.200	0.87	100
C	FXC110BL	FXC210BP	0.006	0.180	0.200	1.28	100
D	FXD109BL	FXD209BP	0.008	0.230	0.245	1.25	100
D	FXD112BL	FXD212BP	0.008	0.230	0.245	1.50	100
D	FXD116BL	FXD216BP	0.012	0.230	0.245	1.92	100
D	FXD120BL	FXD220BP	0.012	0.230	0.245	2.31	100
D	FXD130BL	FXD230BP	0.012	0.230	0.245	3.31	100

* Tolerence for C & D sections, ± 0.02 inches.

Ez-Flez strip brush will fit in Sealeze aluminum holders. See below for available configurations.

Sealeze Standard Flexible Strip Brush with Integrated Holder †
Section	Product Code Nylon	Product Code Polypro	Standard Filament Diameter	Dimensions See Note*		Flange Thickness ±0.02	Flange Height ±0.05	Exposed† ±0.015	Standard Continuous Length (feet)
				X	Y
C	FXC80IH06BL	FXC80IH206BP	0.006	0.18	0.19	0.06	0.50	0.62	10
C	FXC80IH10BL	FXC80IH210BP	0.006	0.18	0.19	0.06	0.50	1.03	10
D	FXD80IH09BL	FXD80IH209BP	0.008	0.22	0.25	0.06	0.55	0.93	10
D	FXD80IH12BL	FXD80IH212BP	0.008	0.22	0.25	0.06	0.55	1.18	10
D	FXD80IH16BL	FXD80IH216BP	0.012	0.22	0.25	0.06	0.55	1.60	10
D	FXD80IH20BL	FXD80IH220BP	0.012	0.22	0.25	0.06	0.55	1.99	10
D	FXD80IH30BL	FXD80IH230BP	0.012	0.22	0.25	0.06	0.55	2.99	10

* Tolerence for C & D sections, ± 0.02 inches.
† Exposed filament from bottom of integrated holder (filament length)

Due to the nature of extruded plastic materials, please note the dimensional tolerances and take these into consideration when incorporating these products into your design.

Stock Holders for Sealeze Flexible Strip Brush
Fits Brush Selection Size		Holder Product Code	X	B	C	D
				in.	in.	in.
Straight Flanges
C	XTC380CLA		180°	0.439	0.311	0.292
C	XTC381CLA		180°	0.750	0.311	0.292
C	XTC382CLA		180°	1.500	0.311	0.292
C	XTC383CLA		180°	3.000	0.311	0.292
D (1)	XTD480CLA		180°	0.711	0.391	0.366
D	XTD482CLA		180°	1.500	0.391	0.366
D	XTD483CLA		180°	3.000	0.391	0.366
Angled Flanges
C		XTC345CLA	45°	1.250	0.311	0.292
D		XTD445CLA	45°	0.844	0.391	0.366
D		XTD45XCLA	45°	1.890	0.391	0.366
D (3)		XTD45RCLA	45°	1.000	0.391	0.366
Right-Angled Flanges
C		XTC390CLA	90°	0.633	0.303	0.331
D		XTD490CLA	90°	0.697	0.365	0.391

(1)Also available in roll-formed stainless steel,
(3) Reverse flange
