Wire Descaling

Performance Matters

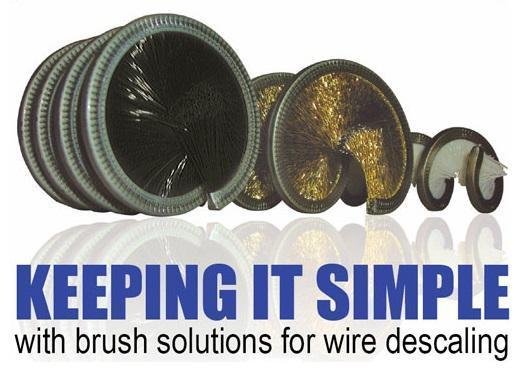

Sealeze provides simple solutions for wire descaling applications. Our spiral brushes for wire descaling are available in a variety of sizes and filament materials. Sealeze manufactures a line of wire/rod mechanical descaling and cleaning brushes that can be used as a secondary operation to chemical descaling, that can:

• Remove excess scale
• Extend die life
• Remove excess lubricants, residue and debris
• Optimize condition of wire or rod surface both preprocess and post-process
• Increase uniform lubrication adhesion
• Improve drawing and bending machine performance
• Enhance surface finish and brightness
• Reduce costs associated with chemical descaling

Brighten the finish of wire and/or rods with Sealeze spiral brushes for wire descaling. Our brushes are available in a variety of filaments to use for deburring cables and rods, for wiping cables clean of debris, talc and other by-products of the production process.

Choosing the Right brush for your Application.
Brass Coated Steel Filament with galvanized steel holding section for removing scale, lubrication residue and carrier coating
on wires and rods. Several ODs and filament diameters available. See chart below. Product Code: ISC1CSBR

Stainless Steel Filament with stainless steel* holding section for aggressive cleaning and high-temperature environments.
Product Code: ISA2SS10.32

White Polypro Filament with stainless steel* holding section for secondary cleaning of small diameter wire in alkaline, acid or
petroleum cleaning baths. Several ODs and filament diameters available. See chart below. Product Code: ISC2PWL

Black, non-scratching Nylon Filament with galvanized steel holding section for removing light scale and light coatings. Product
Code: ISC1NBL41.57

"Feather-Touch" Nylon Filament for removing talc from copper wire. Product Code: ISA1NBL08.63

WIRE DESCALING SPIRAL BRUSH
R	Product Code	Filament Material	Frame Material	OD		ID		Filament Dia.		Frame Width (X)		Pitch		Length
				in.	mm	in.	mm	in.	mm	in.	mm	in.	mm	in.	meter
1	ISC1CSBR30.57	CSBR	GS	2.25	57	0	0	0.012	0.30	0.18	4.57	1.25	32	39.37	1.00
2	ISC1CSBR20.57	CSBR	GS	2.25	57	0	0	0.008	0.20	0.18	4.57	1.25	32	39.37	1.00
3	ISC1CSBR30.76	CSBR	GS	3.00	76	0	0	0.012	0.30	0.18	4.57	1.25	32	39.37	1.00
4	ISC1NBL41.57	Nylon	GS	2.25	57	0	0	0.016	0.41	0.18	4.57	1.25	32	39.37	1.00
5	ISA1NBL08.63	Nylon	GS	2.50	63	0	0	0.003	0.08	0.10	2.41	0.50	13	39.37	1.00
6	ISA2SS10.32	SS	SS	1.25	32	0	0	0.004	0.10	0.10	2.41	0.50	13	39.37	1.00
7	ISC2PWL51.38	White Polypropylene	SS	1.50	38	0	0	0.020	0.51	0.18	4.57	1.13	29	39.37	1.00
8	ISC2PWL51.57	White Polypropylene	SS	2.25	57	0	0	0.020	0.51	0.18	4.57	1.25	32	39.37	1.00
CSBR=Brass Coated Carbon Steel GS=Galvanized Steel SS=304 Stainless Steel (316 available upon request)

See our worksheet for wire descaling brushes, it's available as a PDF to download, or can be filled out on-line and submitted. Call us at 800.787.7325 to speak with a knowledgeable Sales Representative or email us at industrial@sealeze.com.
