Custom

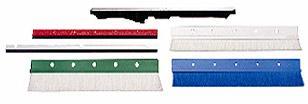

Strip Brush and Holders
 |
 |
 |
 |
| |
Ez-Flex
Strip Brush is available as an alternative to
metal back brush. It's great for use around curves
and in-field installation. Click
here for more information. |
|
 |
|
 |
|
In addition
to manufacturing straight strip brush with exposed filament
lengths of 0.125 inches and greater, we can manufacture brushes
with special profile trims. We can die-cut f ilament profiles
to your drawings to provide a brush that will seal or wipe
an irregular shape or surface. Filaments are available with
diameters of 0.0025 inches and larger, in almost any color
you might need. Minimum orders may apply for special filament
colors, shapes, etc.
Our
stock channels are galvanized steel and immediately
available. We stock stainless steel materials T-304,
T-304L, T-316, and T-316L and can provide stainless
steel channel brushes in 5 to 10 working days. We have
the capability to make brushes with brass and monel
channels and will consider other channel materials upon
request. Longer lead times and minimum orders may apply.
Mounting holes can be provided to your exact dimensions
and placement. Click here for our standard mounting hole dimensions. We can machine-notch
the flange to perfectly fit your application and holders
can be anodized to your specifications or powder coated
to any color. All of our extruded holders are aluminum;
roll-formed holders in alloys such as steel, stainless
steel, brass and monel are available.
If your application requires a custom strip brush, click
on one of the links below to provide us with the necessary
information.
Click here to download a worksheet for Custom Strip Brush (pdf)
Or, click here for the
On-Line Worksheet
To
e-mail us your application information, click here.
Or, call 1-800-787-7325 or 1-804-743-0982 |
|
| Channel
Section Size |
 |
Section
Size |
(X)
Width
(inches) |
(Y)
Height
(inches) |
| A |
0.095 |
0.110 |
| B |
0.150 |
0.152 |
| C |
0.180 |
0.199 |
| D |
0.240 |
0.256 |
| F |
0.313 |
0.313 |
| G |
0.350 |
0.370 |
| K |
0.500 |
0.500 |
|
