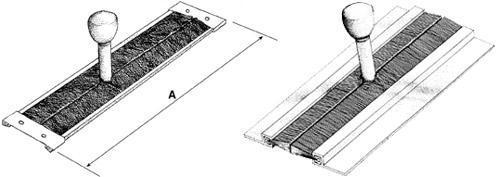

Brush Lever Seals
Lever seals are available in a variety
of filaments and can be constructed in channel and clip materials
to meet your needs. They can be made to almost any length and
width.
| Stock Lever Seals | |||||||||||||||||||||||||||
 |
|
||||||||||||||||||||||||||
| STOCK LEVER SEALS ASSEMBLIES | |
| Product No. | Description |
| LSB103BC | T-304 stainlesss steel clips (2); SFB103BC stock nylon brush (cut to length "A") with 0.500 OAT, nylon black crimped filament, galvanized steel channel. |
| LSC110BC | T-304 stainlesss steel clips (2); SFC110BC stock nylon brush (cut to length "A") with 1.20" OAT, nylon black crimped filament, galvanized steel channel. |
| LSD112BC | T-304 stainlesss steel clips (2); SFD112BC stock nylon brush (cut to length "A") with 1.50" OAT, nylon black crimped filament, galvanized steel channel. |
| Stock T-304 Stainless Steel Clip Specifications for Stock Lever Seals | ||||
| Fits Brush Channel | Length | Width | Hole Diameter | Hole Spacing |
| B | 1.06" | .316" | .138" | .340" |
| C | 2.46" | .315" | .138" | .807" |
| D | 3.06" | .500" | .190" | 1.236" |
Click here to
download a worksheet for Stock Lever Seals (pdf) Or, click here for the On-Line Worksheet
| Custom
Lever Seals Custom lever seals are available in a variety of filaments and channel materials, as shown below. They can be made to almost any length and width. |
|||||||||||||||||||||||||||||||||||||||||||||||
Other S/S available on request. |
|
||||||||||||||||||||||||||||||||||||||||||||||
Or, click here for the On-Line Worksheet
Lever Seals of almost any length |
|
Long lever seals can be configured using Sealeze stock nylon brushes mounted brush holders. Brushes with holders are mounted in parallel with the ends of the filaments just touching. With brush holders, end clips are not necessary. Holders can be provided with mounting holes to meet your specifications. Click here for mounting hole options. If your application requires lever seals with special materials, shapes or sizes, contact a Sealeze Sales Representative for more information. |
 |
To
e-mail us your application information, click here. Or, call 1-800-787-7325 or 1-804-743-0982 |
